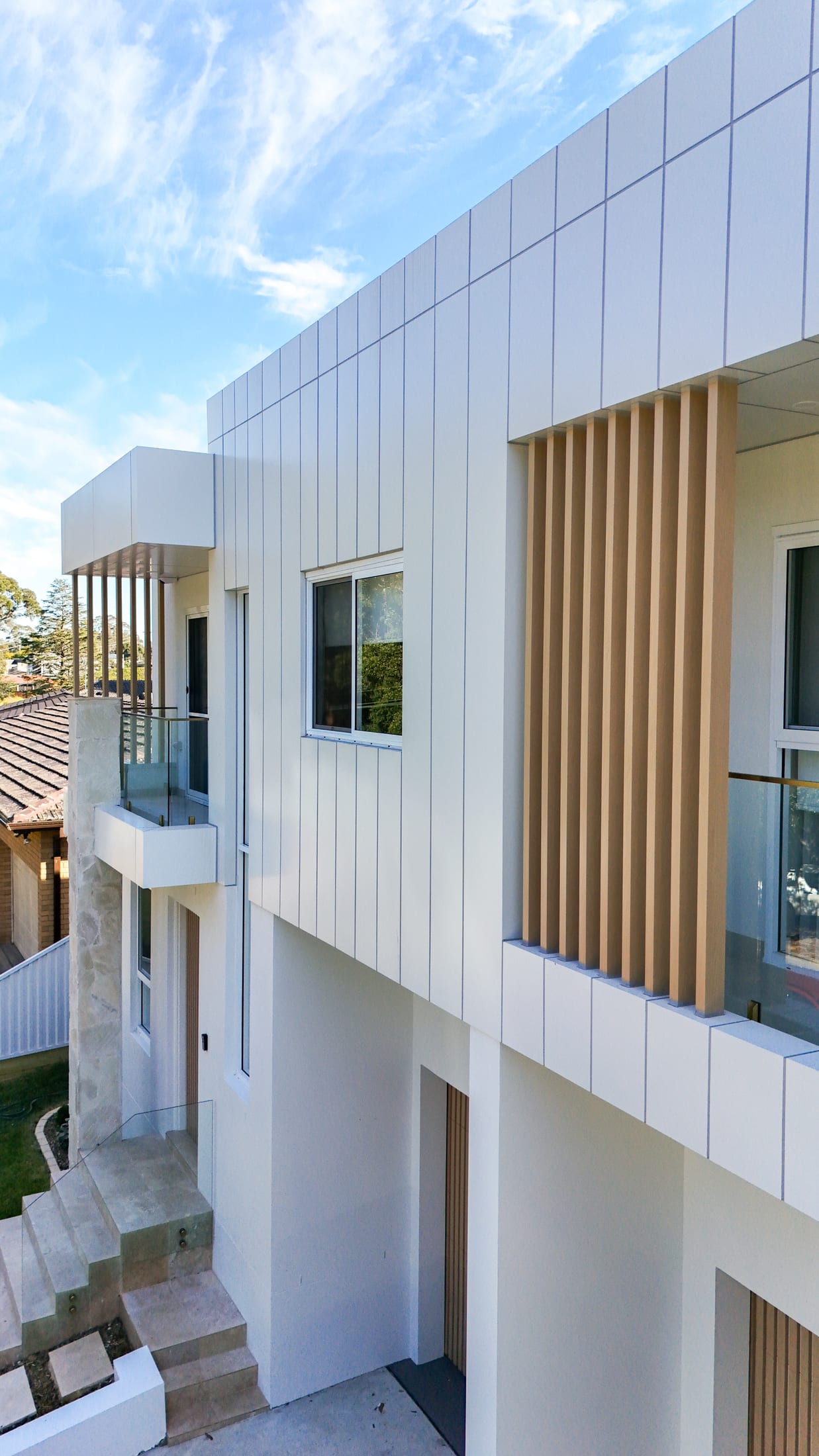

Contemporary white facade with vertical timber-look square batten feature panels

Products / Square Battens

SQUARE BATTENS

Name: Square Battens
Brand: BattenPro

Structural box-section aluminium battens in 50mm and 100mm ranges. Stocked locally, coated in Sydney, supplied in lengths up to 6500mm.

Overview

Box-section battens with a true square profile.

Our square batten range is extruded box section — a structural, four-sided profile that holds a crisp shadow line across screens, facades and balustrades. Available in two profile families, 50mm and 100mm, with wall thicknesses from 1.6mm to 3mm. Stocked and coated in Sydney, shipped Australia-wide in any Interpon or Dulux powder coat colour plus our timber-look wood-grain range.

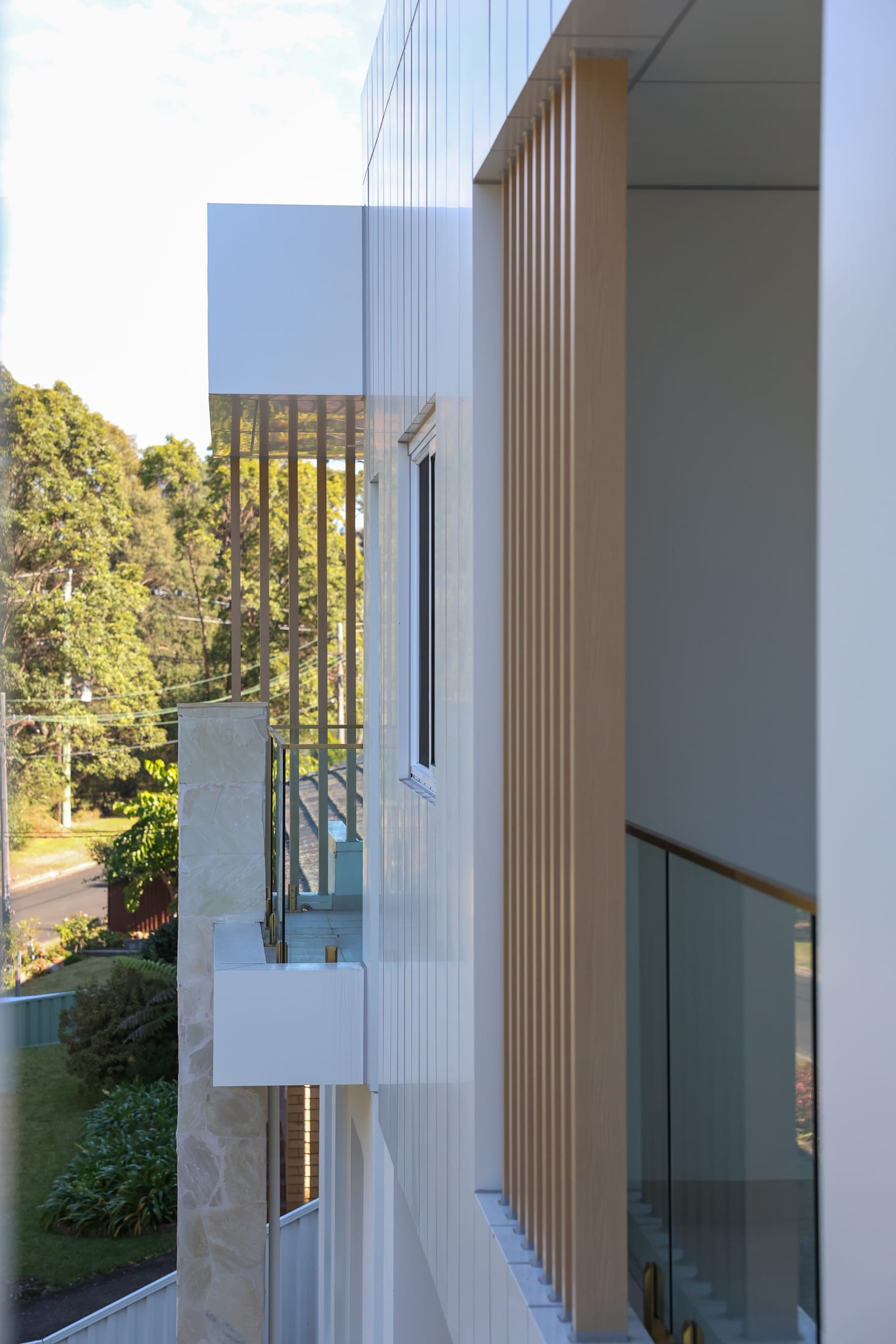

Vertical timber-look square batten screen on a white rendered facade

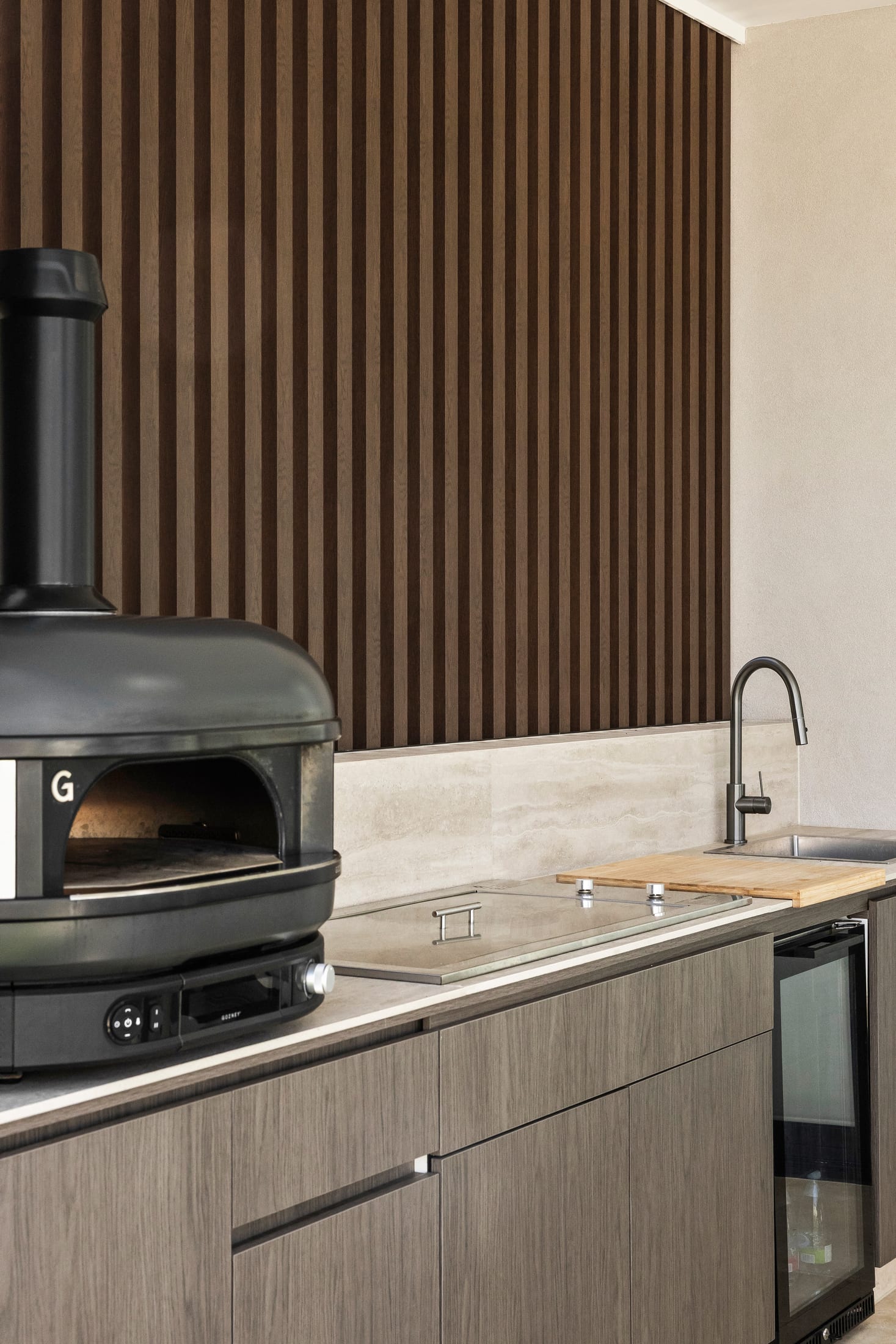

Dark timber-look square battens forming a feature wall behind a kitchen

Applications

One profile, inside and out.

Square battens suit vertical and horizontal screens, ceilings and feature walls, internally or externally. The box section spans further between fixings than an open profile, making it well suited to privacy screens, balustrades and gates.

Facade screensPrivacy screensBalustradesCeilings & soffitsFeature wallsGates & fencing

Standard sizes

STANDARD SIZES AVAILABLE.
50mm & 100mm profile families.

50mm Range

50mm Profile Family

6 sizes

0150 × 50 × 1.6mm6000mm

0250 × 50 × 2mm6500mm

0350 × 50 × 2.5mm6500mm

0450 × 50 × 3mm6000mm

0550 × 25 × 1.6mm6000mm

0650 × 25 × 2.5mm6000mm

100mm Range

100mm Profile Family

4 sizes

01100 × 25 × 2mm6000mm

02100 × 50 × 2mm6500mm

03100 × 50 × 3mm6500mm

04150 × 75 × 3mm6500mm

Please also note — other sizes are also stocked and available upon request, these are our most common sizes.

Finishes

POWDER COAT & TIMBER-LOOK

Available in any Interpon or Dulux powder coat colour of your choice, plus the timber-look wood-grain range shown below. More colours available upon request.

Timber-look wood-grain range
