Cutting

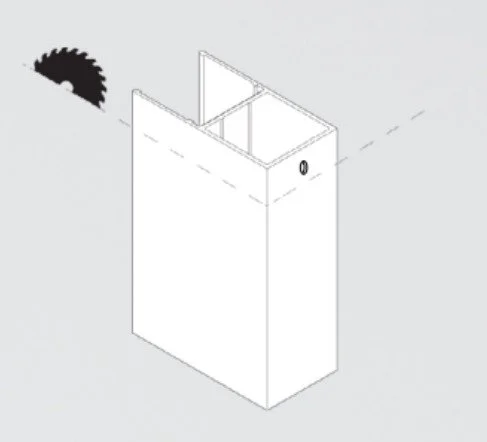

Please check both ends of the batten or extrusion prior to install as all coated items will generally have screw holes on either side, meaning you will need to trim back 50-100mm off the batten due to the powder coating process.
Install Considerations
Prior to commencing the installation of Batten Pro, ensure that all building wraps, flashing tapes and cavity batten systems are installed to their manufacturer’s specifications and requirements.
The Installer/Builder is required to check that all exterior walls, regardless of their location, have the necessary flashings, air barriers, seals and waterproofing sheets to meet the requirements of the BCA.

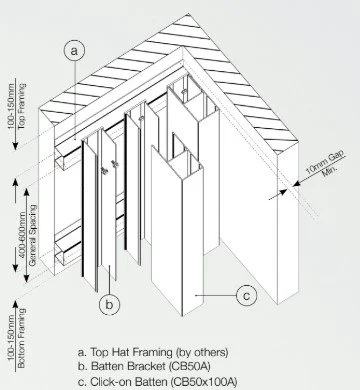

It is very important to ensure that, when you start installing the top board, it is perfectly level. The top hat may require packing out to ensure the battens sit flush when installed.
If the batten is to be installed flush to an end surface, ensure at least 10mm of clearance is provided to allow the batten cover to click over the base. To ensure a straight, consistent and parallel installation, it is strongly recommended that a level is used to position each base.
Adhesive Secure-End Cap
As part of the Batten Pro product range, end caps are available in colour-matched options to suit all batten profiles. Depending on the profile, the end cap will be shaped so that two legs fit into the profile and can be securely attached using a strong adhesive to ensure a tight fit. We recommend that you apply high-quality adhesive to each of the legs or edges as depicted and insert it into the click batten. Take care to ensure that no adhesive is applied to the visible surface of the extrusion or end cap. Ensure that the end cap is securely fastened in place until the adhesive sets.
